Home / Cloning a VSTS code repository in Eclipse

In this exercise, you are going to import the MyShuttle2 repo in your VSTS account into your VM for editing in Eclipse.

This exercise assumes you have completed Exercise 1, have created a Team Project that uses Git for version control, and imported the MyShuttle2 GitHub repo into your team project. This exercise uses a team project named jdev-labs, though your team project name may differ.

Connect to VSTS from Eclipse

  1. Click on the Eclipse icon in the toolbar to launch the Eclipse Java IDE.

    Click Eclipse in the Toolbar

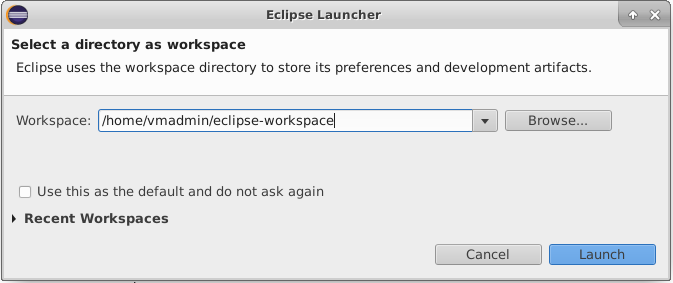

  2. The first time you run Eclipse, it will prompt for configuring the default workspace. select the option Use this as the default and do not ask again to use the default workspace on startup.

    Accept the default Eclipse workspace

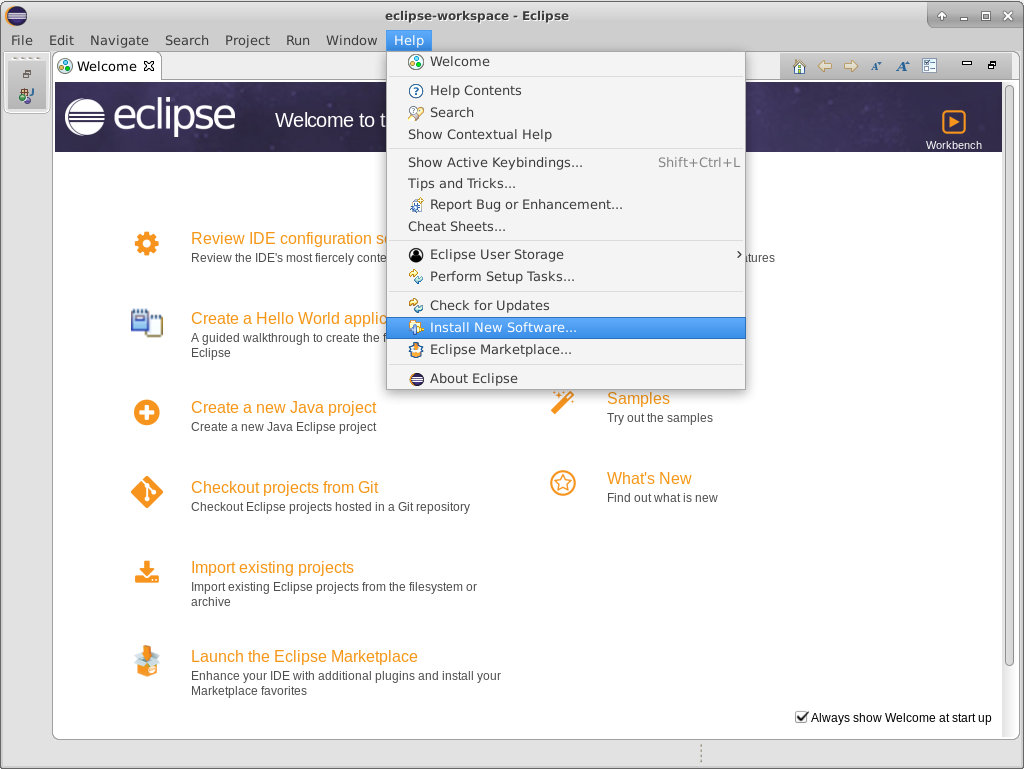

  3. When the Welcome dialog appears, on the Help Menu select Install New Software.

    Click on Help > Install New Software

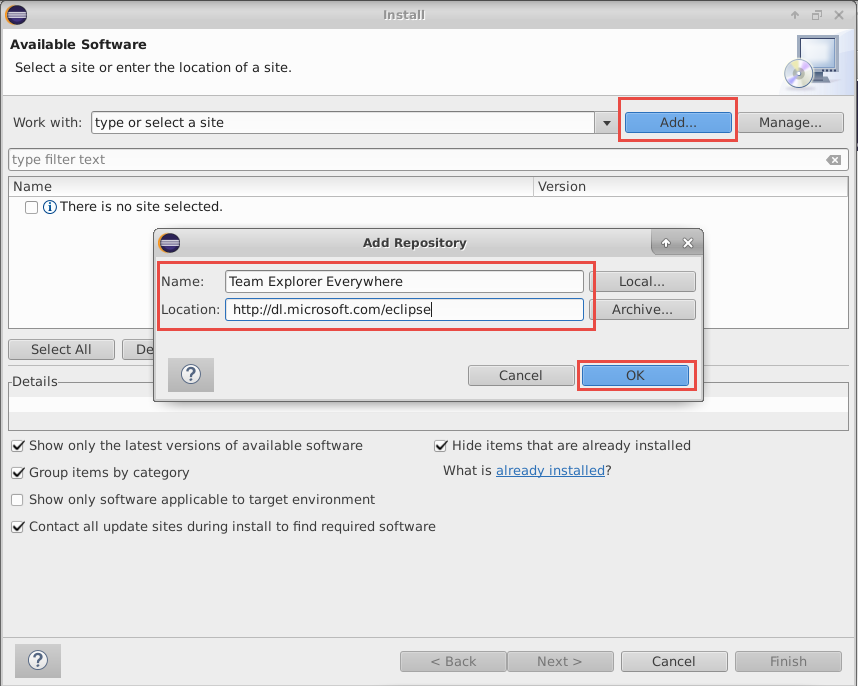

  4. Choose the Add button to add a new repository. Use Team Explorer Everywhere as the name. The location of the update site is http://dl.microsoft.com/eclipse and click OK.

    Add Repository

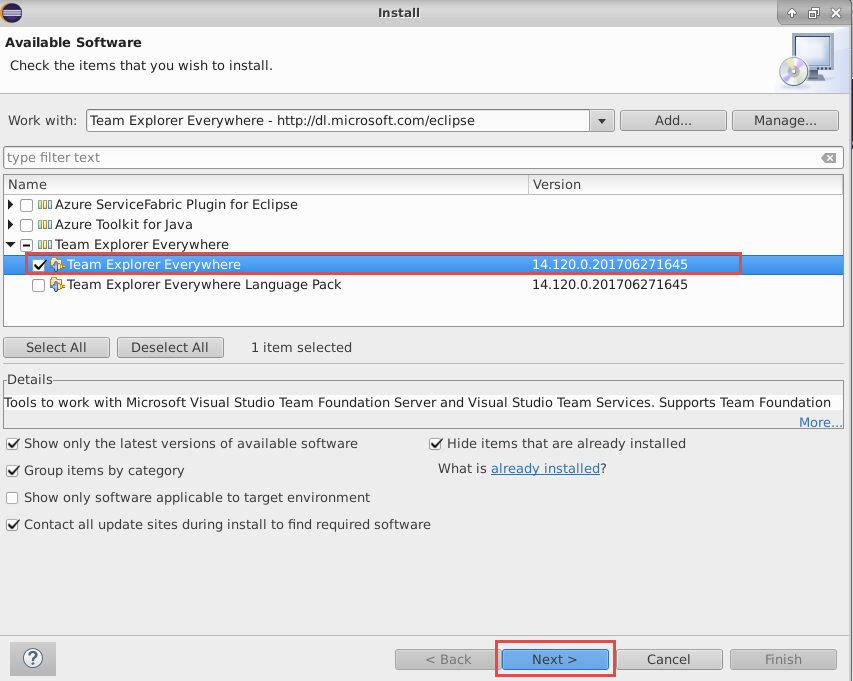

  5. In the list of available software in the Install dialog box, select the Team Explorer Everywhere plugin. If you do not see this option, use the pull-down menu for Work with:, locate the update site URL you provided earlier in the list, select it and then select the plug-in mentioned above.

    Select Team Explorer Everywhere

  6. Click Next twice. Accept the license agreement and click Finish. Eclipse will need to restart.

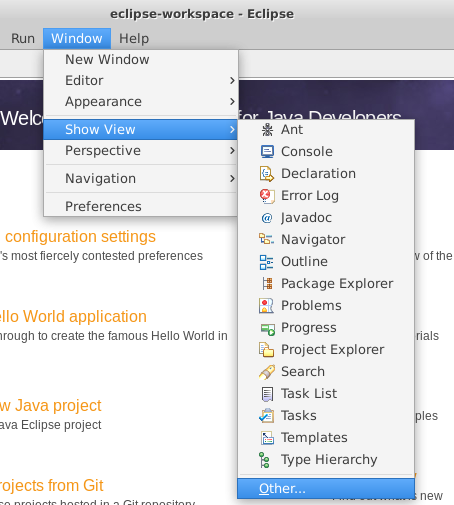

  7. When Eclipse restarts, the Welcome dialog will appear again. Select Windows -> Show View and select Other…

    Checkout from Team Services Git

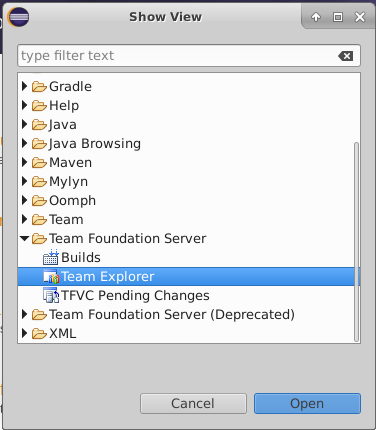

  8. Locate Team Explorer, select the Team Explorer View, and click OK.

    Checkout from Team Services Git

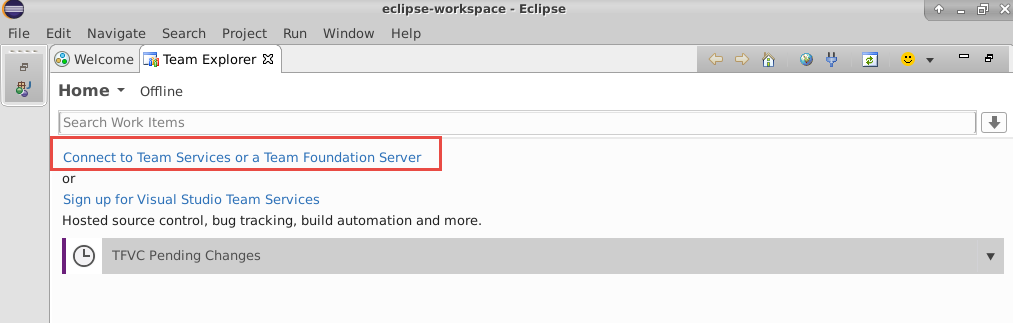

  9. Click on Connect to Team Services … to sign in to your VSTS account.

    Sign in to VSTS

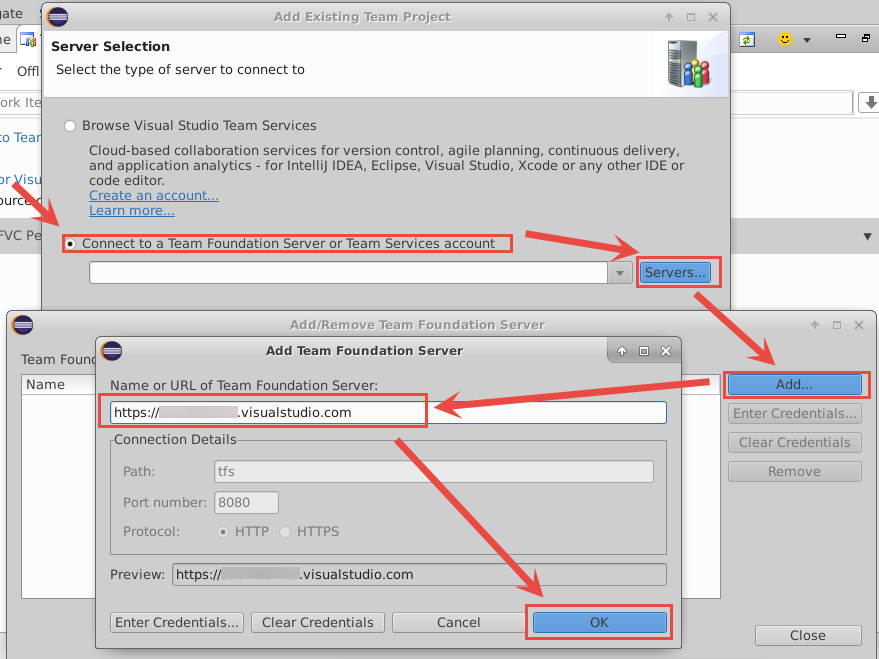

  10. Choose the option Connect to a Team Foundation Server or Team Services account and click Servers…. In the Add/Remove Team Foundation Server panel, click Add… and type the name of the VSTS account (https://{your-account-name}.visualstudio.com) in the Add Team Foundation Server panel. Click OK.

    Sign in to VSTS

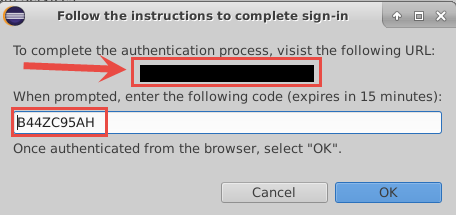

  11. The Follow the instructions to complete sign-in window will pop-up. Click on the hyperlink to be redirected to the Device Login page in a browser on the VM (may have a black background for security purposes).

    Sign in to VSTS

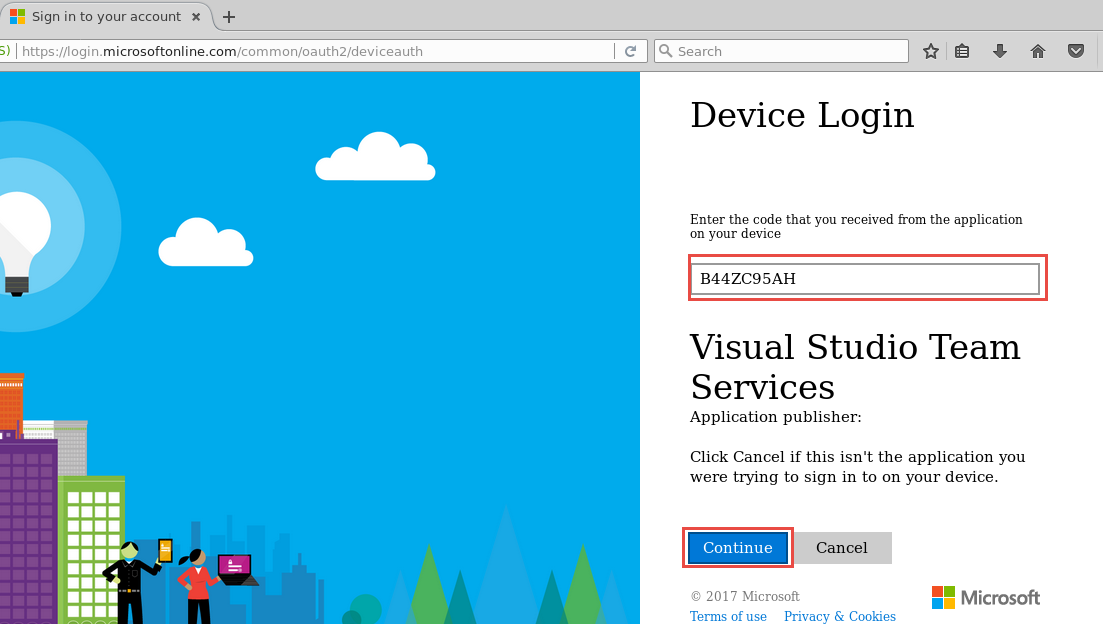

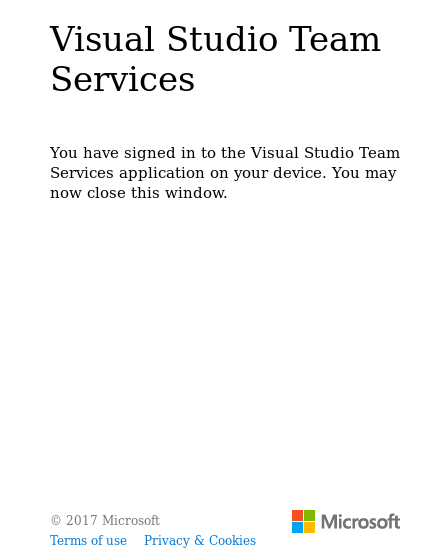

  12. Copy the code in the text field in Eclipse and paste it into the browser page, then click Continue. Then sign in with your credentials used to access VSTS. If you provide incorrect credentials, you can try again by closing Eclipse, deleting the ~/.microsoft/Team Explorer/4.0/* folder, and launching Eclipse again.

    Device login

    Device login

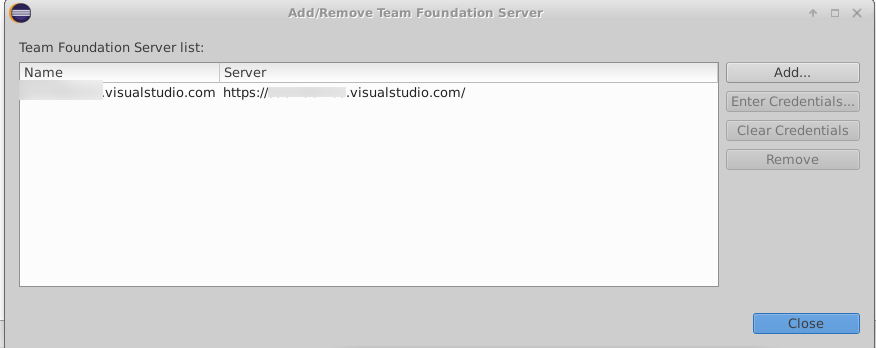

  13. In Eclipse, click OK in the device login window. The VSTS account should now show up in the list of servers to connect. Click Close to close the current window.

    Sign in to VSTS

Clone MyShuttle2 from VSTS with Eclipse

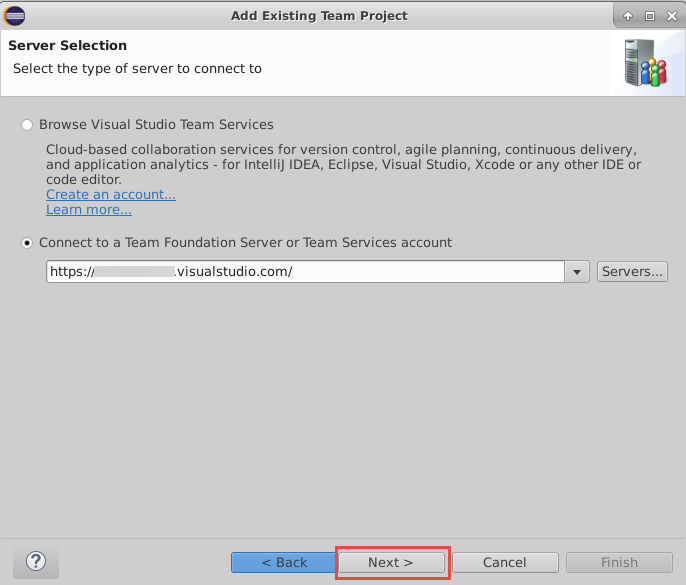

  1. Once you are authenticated, click Next in the Add Existing Team Project window to view the team projects in VSTS.

    Select the VSTS repo

    Select the desired team project in Eclipse and click Finish.

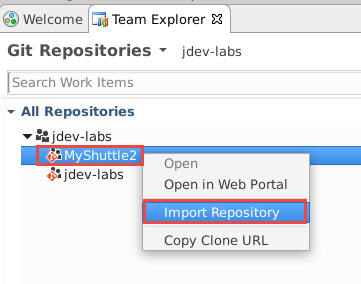

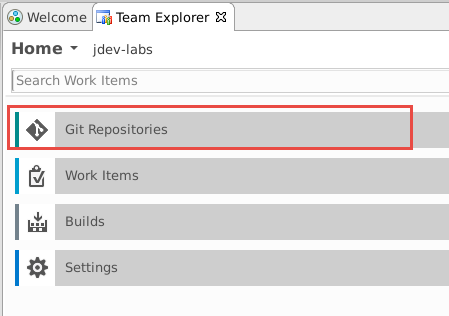

  2. In the Team Explorer Everywhere panel, choose the Git Repositories option. Select the MyShuttle2 repo in the team project, right-click the repo and select Import Repository.

    Select the VSTS repo

    Select the VSTS repo

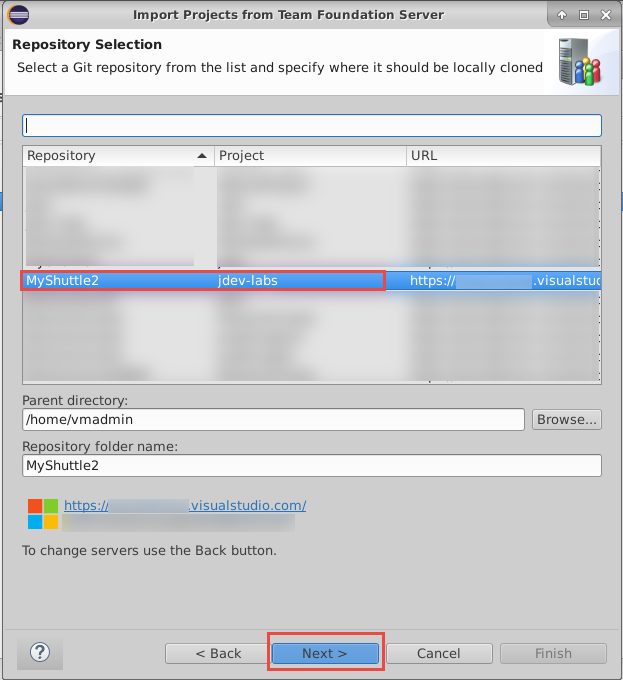

  3. Leave the defaults for the parent directory and the repo folder name and click Next. This will clone the repo onto the VM.

    Select the VSTS repo

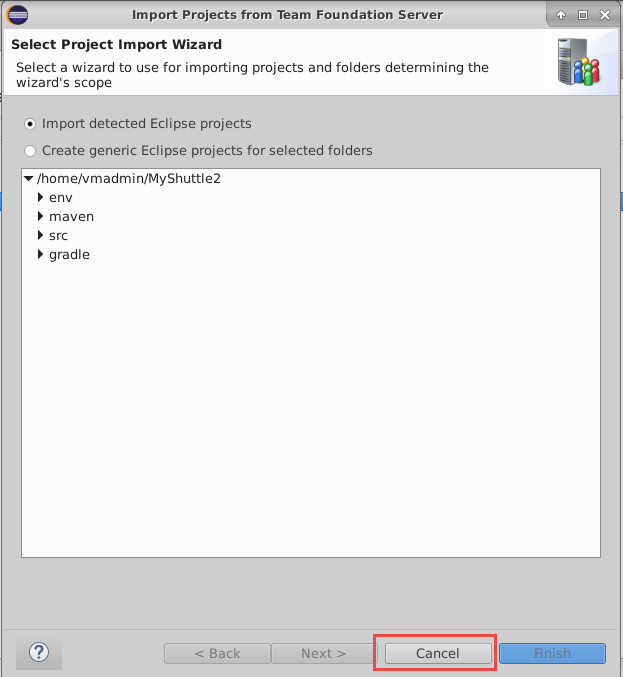

  4. In the Import Projects from Team Foundation Server window, click Cancel to import the project as a Maven project instead of an Eclipse project.

    Select the VSTS repo

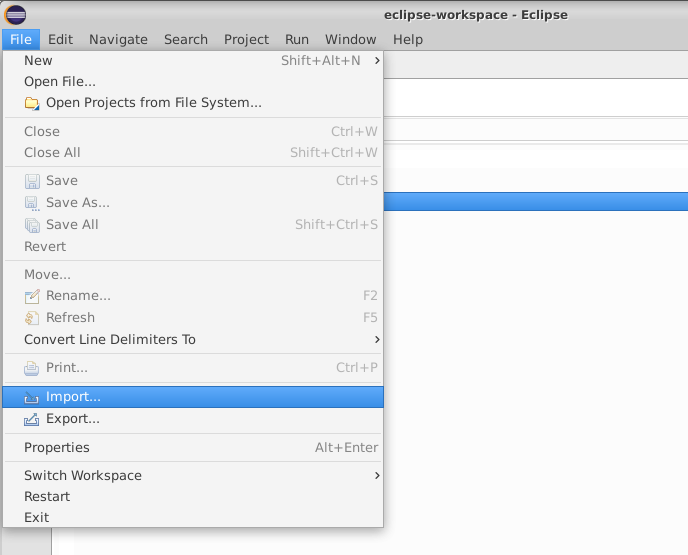

  5. In Eclipse, navigate to File -> Import… to launch the “Import” window.

    Import the Maven project

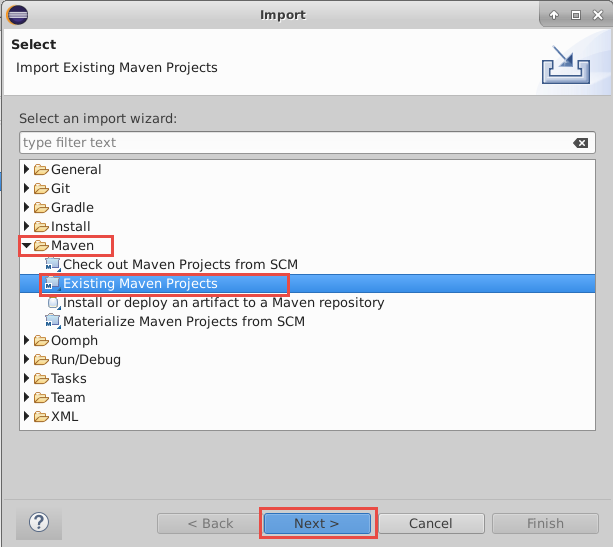

  6. In the Import window, expand the Maven folder, choose Existing Maven projects and click Next.

    Import the Maven project

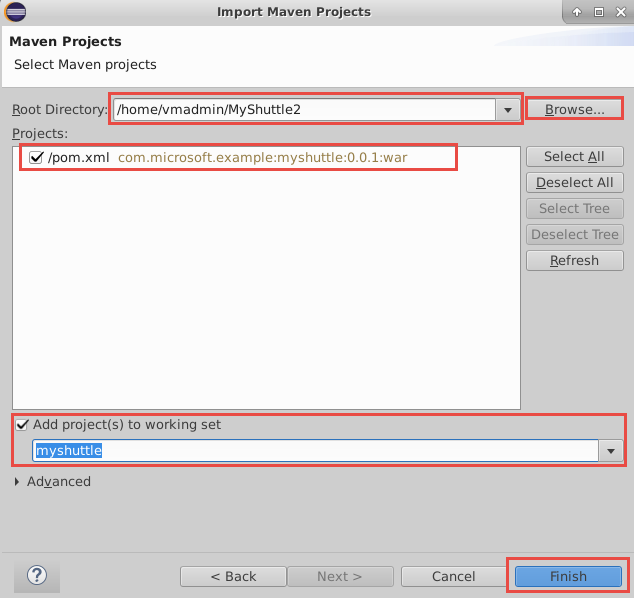

  7. To provide the root directory, click Browse or type the root directory path of /home/vmadmin/MyShuttle2. The pom.xml file should appear under projects to indicate the Maven project. Additionally, choose Add project(s) to working set to access the project separately in the Package Explorer. Click Finish.

    Import the Maven project

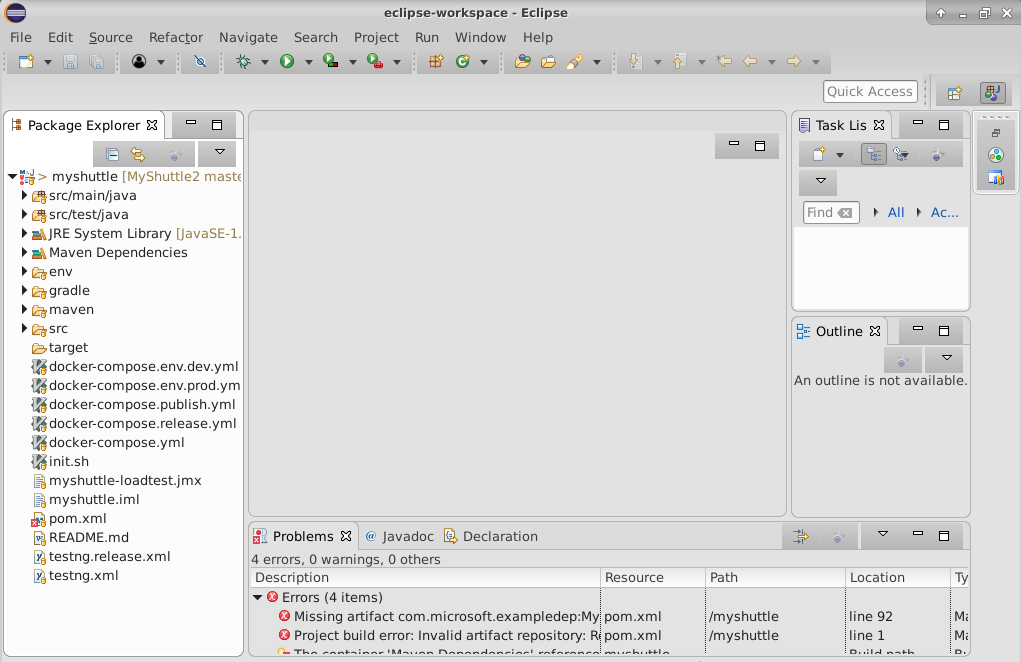

  8. Click on Window -> Show View -> Package Explorer in the toolbar at the top of Eclipse to view the myshuttle project in the Package Explorer. You may have to minimize other windows to view the Package Explorer.

    MyShuttle project

Clone MyShuttleCalc from VSTS with Eclipse

  1. Repeat the repository cloning for MyShuttleCalc.

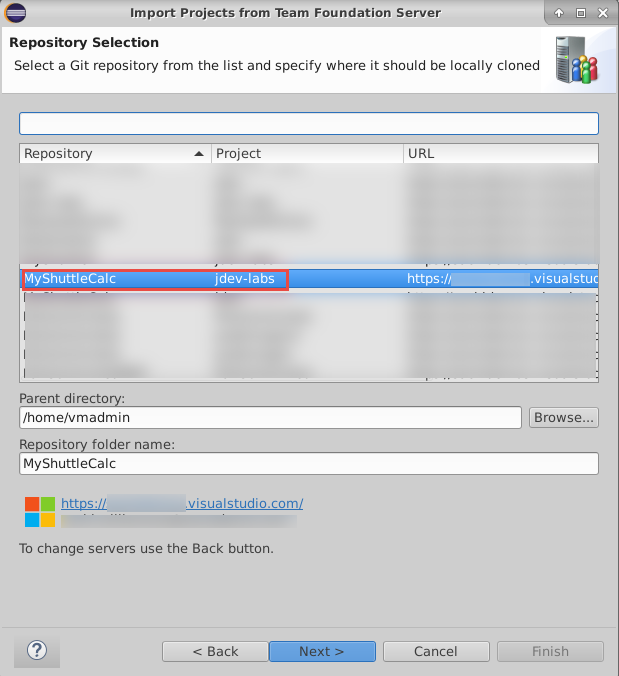

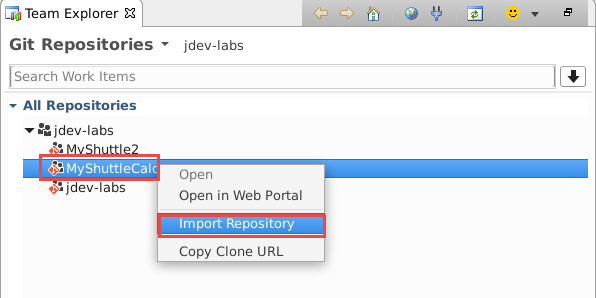

  2. In the Team Explorer Everywhere panel, choose the Git Repositories option. Select the MyShuttleCalc repo in the team project, right-click the repo and select Import Repository.

    Select the VSTS repo

    Select the VSTS repo

  3. Leave the defaults for the parent directory and repo folder name and click Next. This will clone the repo onto the VM.

    Select the VSTS repo

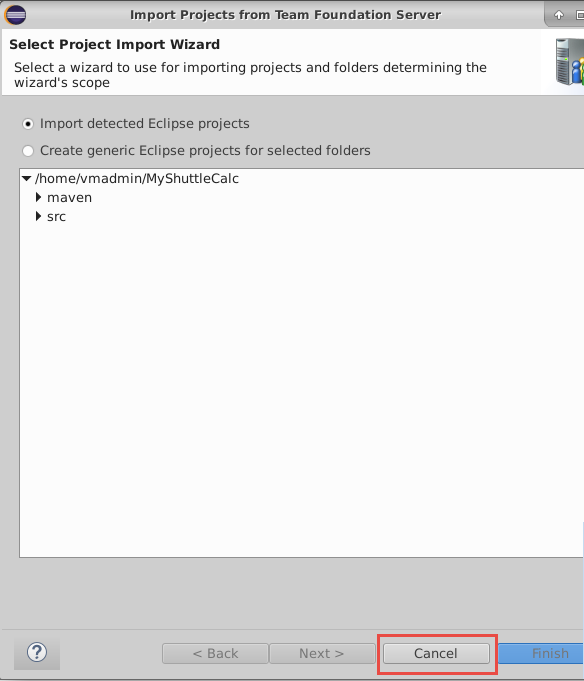

  4. In the Import Projects from Team Foundation Server window, click Cancel to import the project as a Maven project instead of an Eclipse project.

    Select the VSTS repo

  5. In Eclipse, navigate to File -> Import… to launch the “Import” window.

    Import the Maven project

  6. In the Import window, expand the Maven folder and choose Existing Maven projects and click Next.

    Import the Maven project

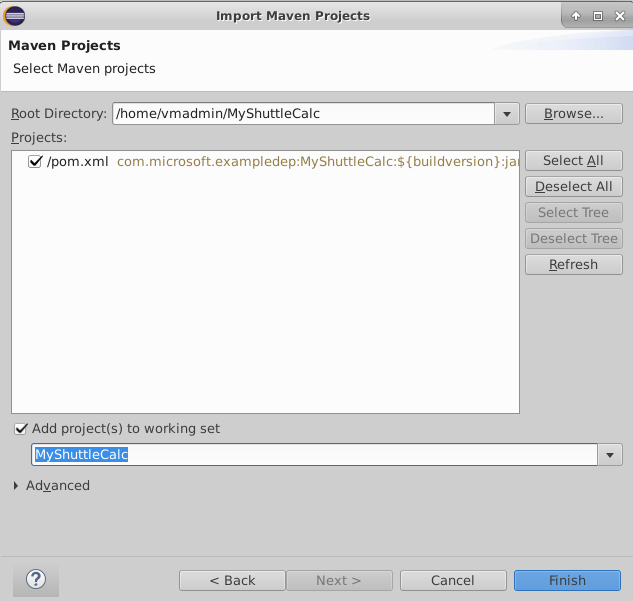

  7. To select the root directory, click Browse or type the root directory path of /home/vmadmin/MyShuttleCalc. The pom.xml file should appear under projects to indicate the Maven project. Select Add project(s) to working set to add myshuttle to access the project separately in the Package Explorer window. Click Finish.

    Import the Maven project

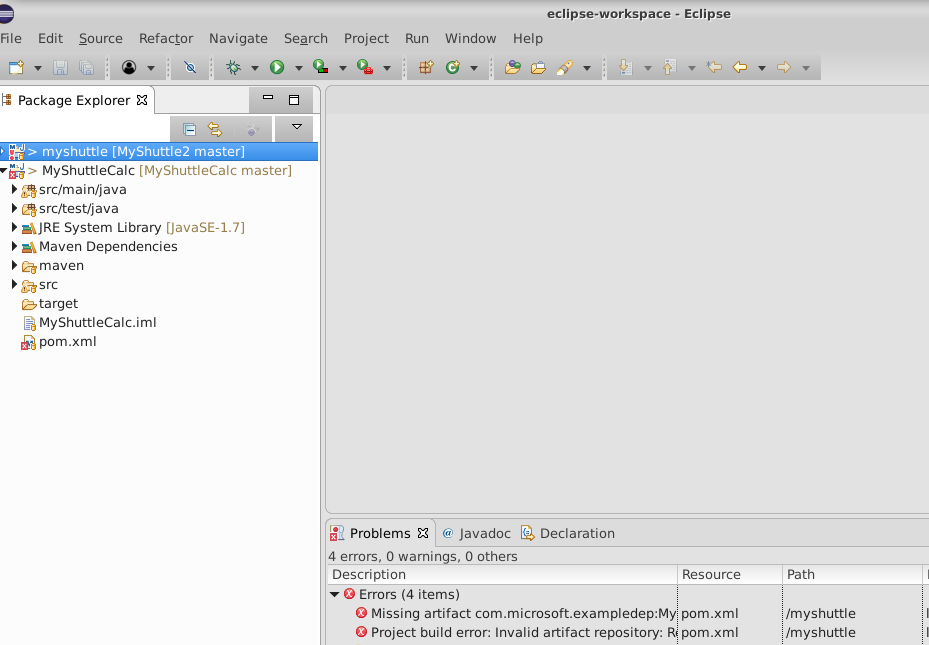

  8. Click on Window -> Show View -> Package Explorer in the toolbar at the top of Eclipse to view the myshuttle project in the Package Explorer. You may have to minimize other windows to view the Package Explorer.

    MyShuttleCalc project
